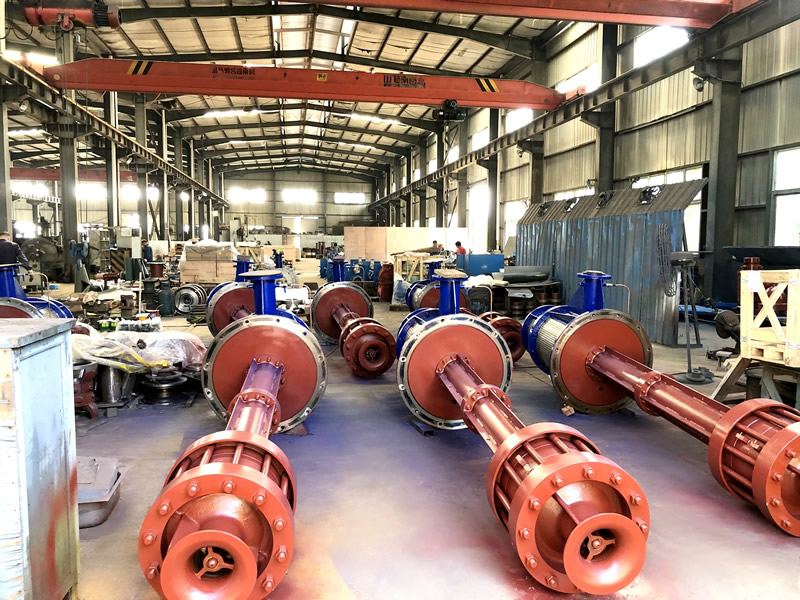

The technological development trend of vertical multi-stage drum bag turbine pump (condensate pump) in the next five years

In the next five years, the technological development of vertical multi-stage drum bag pumps (condensate pumps) will accelerate around four directions: intelligent control, high efficiency and energy saving, new material application, and system integration, promoting the industry to comprehensively upgrade from "single equipment manufacturing" to "intelligent, green, and high reliability solutions". Among them, the comprehensive implementation of intelligence and IE4 and above energy efficiency standards will become the most core technological driving force. It is expected that by 2026, more than 60% of new products will have intelligent monitoring and predictive maintenance functions. The following is a systematic analysis of the specific development trend of vertical multi-stage drum bag pumps (condensate pumps):
1、 Deep penetration of intelligence and digitization
Popularization of Intelligent Perception and Remote Monitoring
·The new generation of pump sets will come standard with multi-dimensional sensors such as vibration, temperature, and sealing status, and real-time operational data will be uploaded to the cloud platform through the Internet of Things (IoT).
·Users can remotely check the health status of the pump through their mobile phone or central control system, receive timely fault warnings, and reduce the risk of unplanned downtime.
Predictive maintenance becomes standard
·Based on big data and AI algorithms, the system can automatically identify early signs such as bearing wear, shaft imbalance, and seal aging, and generate maintenance recommendations in advance.
·Actual test data shows that using predictive maintenance for pump units can reduce operation and maintenance costs by more than 30%, and increase mean time between failures (MTBF) by 40%.
Digital twin technology is widely used
·In key fields such as thermal power and petrochemicals, enterprises will establish digital twin models for important pump units, dynamically simulate operating conditions, optimize start stop strategies and load distribution.
·By combining CFD flow field simulation, the optimal efficiency matching of the pump under different operating conditions can be achieved, and the measured energy saving can reach 9% -14%.
Digital Design and Manufacturing Upgrade
·The collaborative design platform based on cloud computing and AI assisted optimization tools will shorten the product development cycle to less than 50% of the current level, significantly improving research and development efficiency.
2、 Comprehensive upgrade of high-efficiency and energy-saving technologies
IE4 Energy Efficiency Standard Mandatory Implementation
·Starting from 2025, the GB19762-2023 standard will set IE4 energy efficiency as the entry threshold, forcing over 60% of inefficient existing equipment to be accelerated and phased out.
·New products must achieve energy efficiency breakthroughs through efficient hydraulic model optimization (such as CFD simulation), application of high-grade stainless steel (such as Super316L), permanent magnet direct drive, and other technological paths.
The comprehensive efficiency of the system has exceeded 85%
·By optimizing the matching of impellers and guide vanes, reducing internal leakage, and minimizing mechanical friction losses, the system efficiency of high-end products has reached over 85%.
·The direct drive scheme of permanent magnet synchronous motor gradually replaces the traditional asynchronous motor+coupling structure, reducing transmission losses and improving overall energy efficiency.
Deepening of Green and Low Carbon Design
·The unit energy consumption of the new generation products is expected to be reduced by an additional 25% -30% on the existing basis, significantly reducing carbon emissions throughout the entire lifecycle.
·The enterprise will establish a "green supply chain" to control the hidden carbon throughout the entire process from raw material procurement to production and manufacturing. The hidden carbon of the top enterprises has decreased by 21% compared to 2021.
3、 Breakthrough in New Materials and Structural Innovation
Upgrade of corrosion-resistant and wear-resistant materials
·Under high temperature and high pressure conditions, special materials such as Hastelloy, Monel, and duplex steel are widely used to extend the life of key components.
·Graphene reinforced composite materials and nano coating technology have entered the pilot stage, which is expected to achieve dual improvements in pump body lightweighting and corrosion resistance.
Application of self-cleaning and non-stop technology
·Introducing a new type of cylinder bag pump with a sliding filter structure, which can automatically switch the filter position during operation, achieving non-stop cleaning and significantly improving continuous operation capability.
·This design is particularly suitable for industrial water and agricultural irrigation scenarios containing trace particles, reducing manual intervention and downtime losses.
Expansion of magnetic drive and shaftless sealing technology
·For toxic, harmful, flammable and explosive media, the double isolation sleeve magnetic drive structure will be further popularized to completely eliminate the risk of leakage.
·The sealed chamber is equipped with a pressure sensor, which can monitor the integrity of the isolation sleeve in real time and improve safety.
4、 Systematic and service-oriented transformation
From product to overall solution
·Manufacturers are no longer limited to providing a single pump body, but offer a full process solution including selection design, installation and commissioning, intelligent monitoring, and operation and maintenance services.
·Especially in industries such as petrochemicals and power, users tend to adopt a combination of "Energy Performance Contracting (EMC)+Intelligent Operations and Maintenance" to reduce initial investment and operational pressure.
Popularization of intelligent manufacturing and flexible production
·The integration of digital factories, flexible manufacturing systems (FMS), and intelligent logistics applications enables intelligent management of the entire process from order to delivery.
·The production efficiency has increased by over 40%, and the product qualification rate has remained stable at over 99.5%, significantly reducing the risk of quality fluctuations.
Internationalization standard docking acceleration
·Domestic leading enterprises actively participate in the formulation of international standards such as API 610 and ASME, promoting product technical indicators to reach or exceed international advanced levels.
·It is expected that within the next five years, at least 10 Chinese companies will achieve international certification coverage for all scenarios of nuclear power, thermal power, and petrochemicals.
